200/250/300mm Long Thread Rolling Machine
The machine could roll 200/250/300mm long thread. It meets requirements in JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.
Technicial Parameter:
Model | 200/250/300mm Long Thread Rolling Machine |
Thread Pitch | 2.5-3.0 mm |
Main Motor Power | 7.5 kw |
Working Current | 380V 50HZ |
Spindle Speed | 62-75 r/min |
Max. Thread Length | Right thread: 200/250/300mm |
Net Weight | 580 kg |

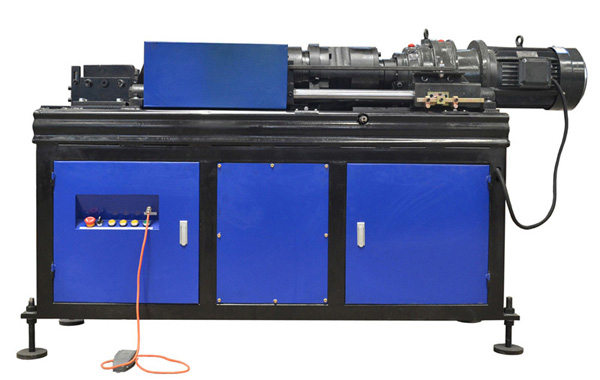

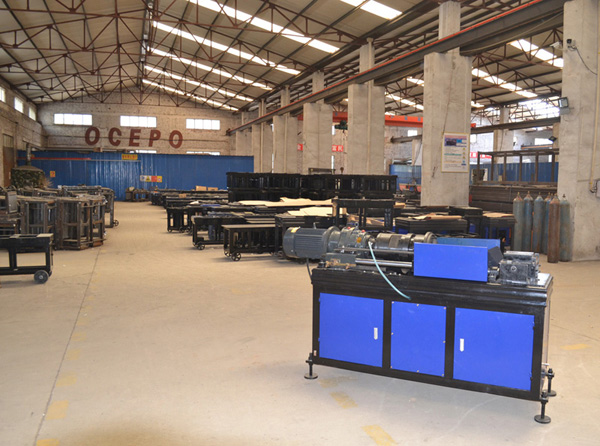

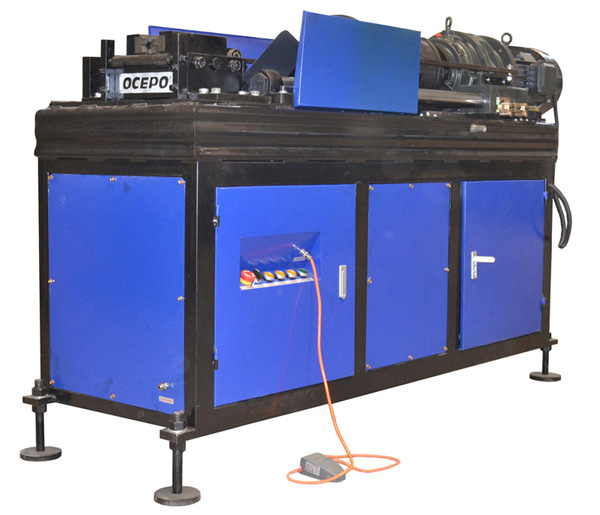

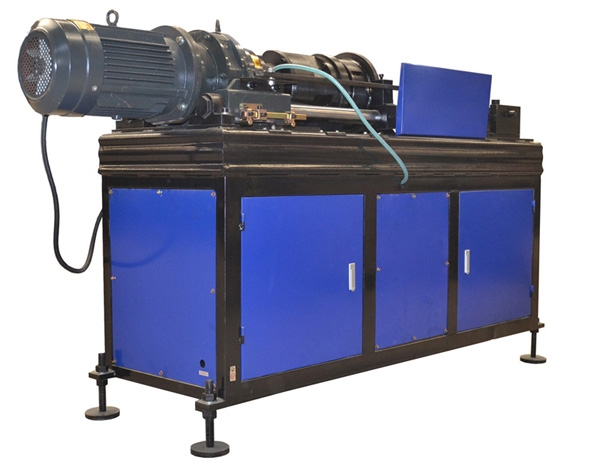

Photos of 200/250/300mm Long Thread Rolling Machine:

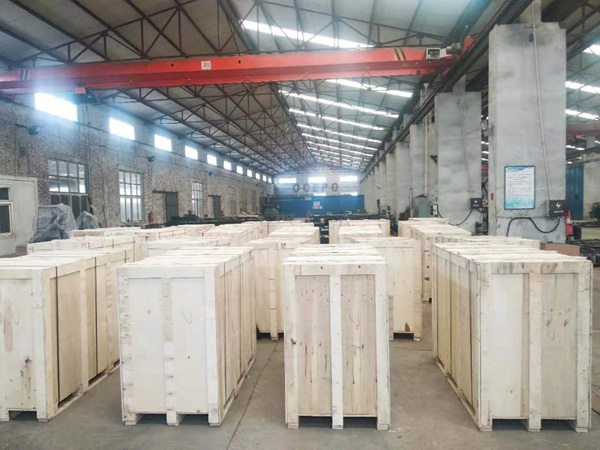

Packing:
It is used to roll thread on rebar or steel rod.
1. Roll thread not cut thread, so could protect the highest tensile strength of parent metal. It meets requirements in JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.
2. Easy to operate. Automatic opening-closing mechanism for rib peeling device, need only 30 seconds to finish a threaded end.
3. Peel ribs and roll threads by the same machine, so could save labor and improve productivity.
4. Widely used. Be able to process rebar diameter 16-40mm
5. Environment-friendly, safe, no environment and weather restrictions.
6. Economic, low investment for the equipment
Product Name: 200/250/300mm Long Thread Rolling Machine
